Accumulators, valve bodies, reservoir and pipes
Reservoir
Click on photos for full view.

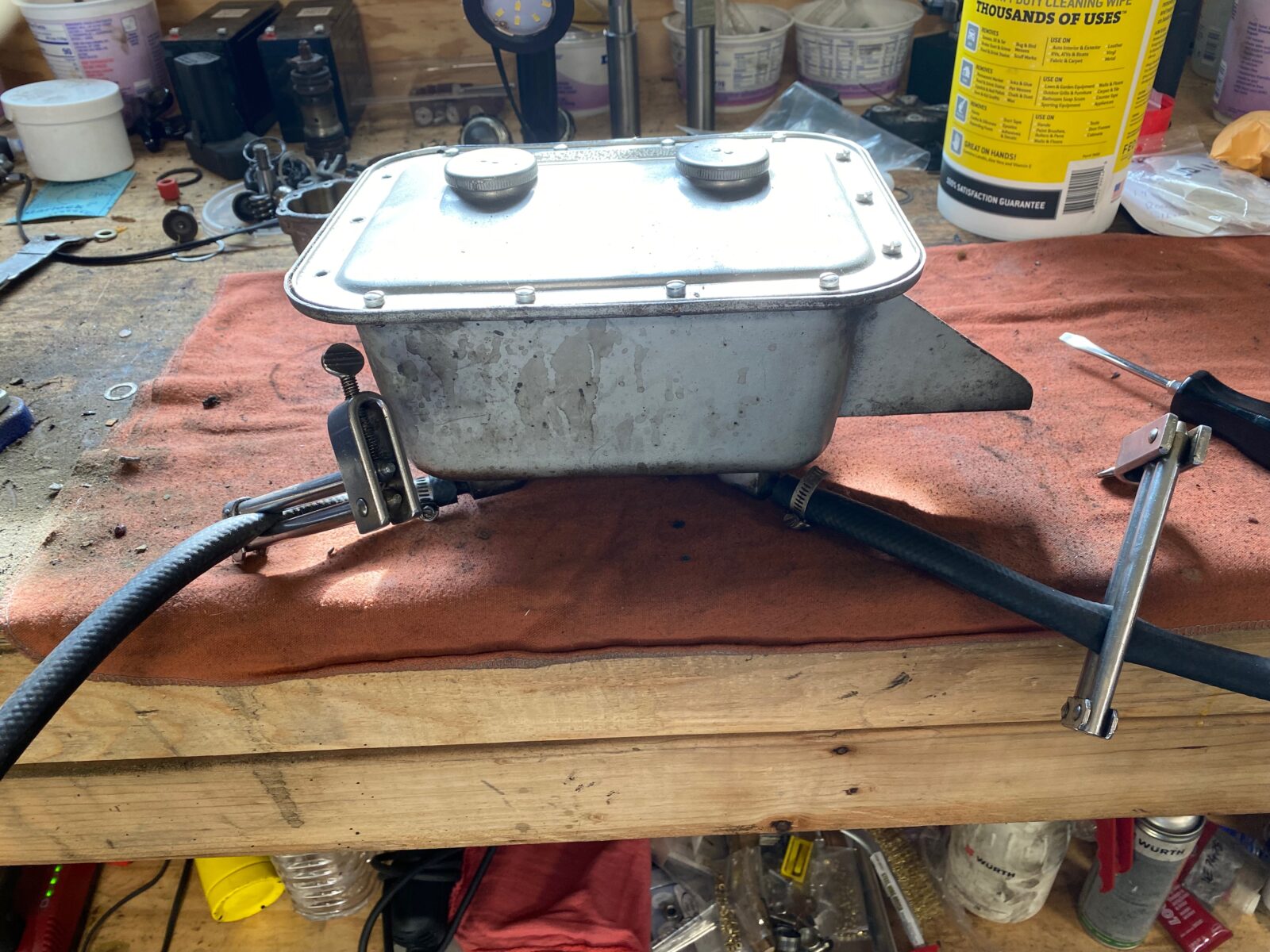

Reservoir removed from car.

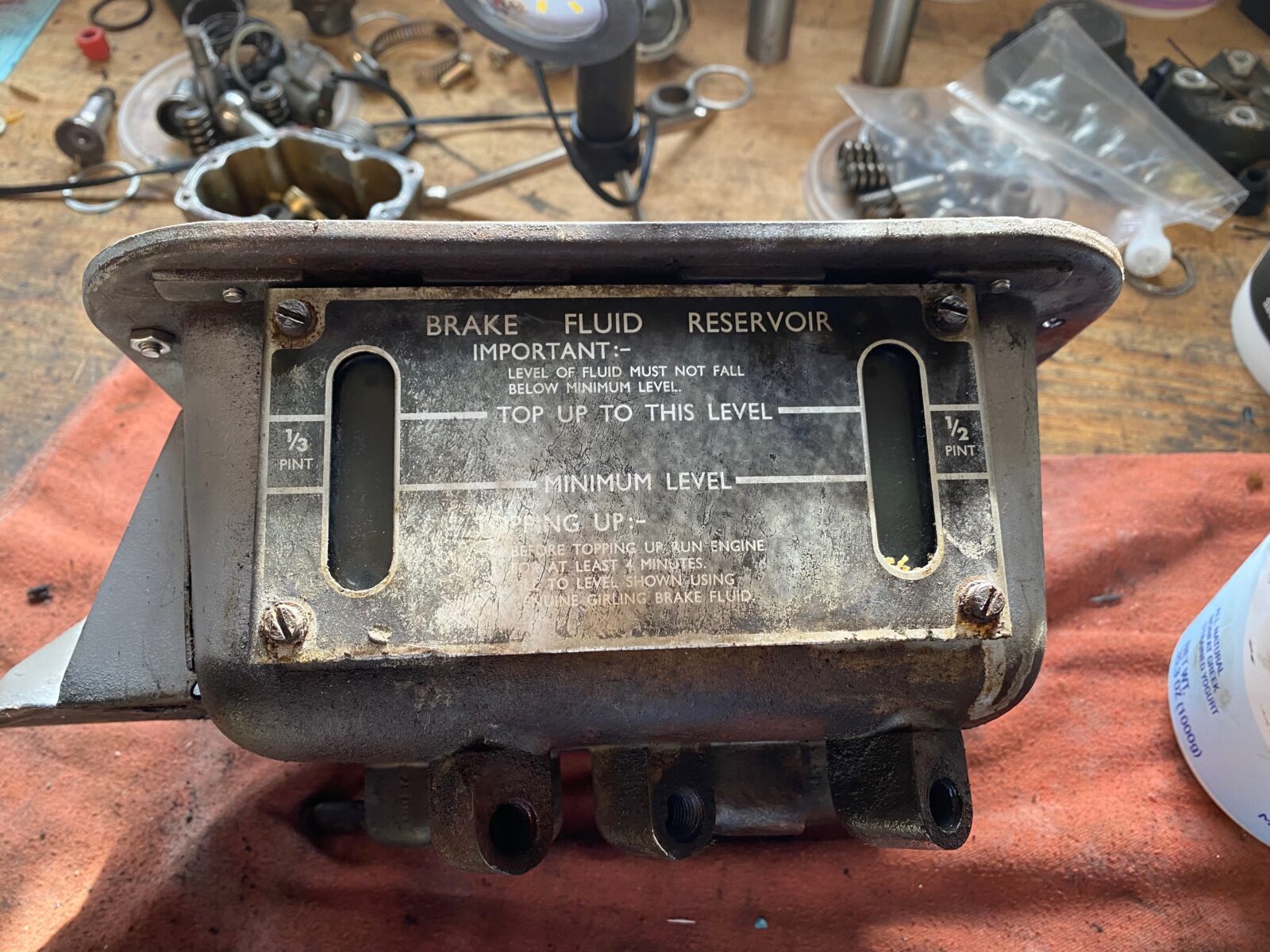

Remove the 4 screws from label.
Showing flush mounted screws under label.
Special Allen Key to remove screws.

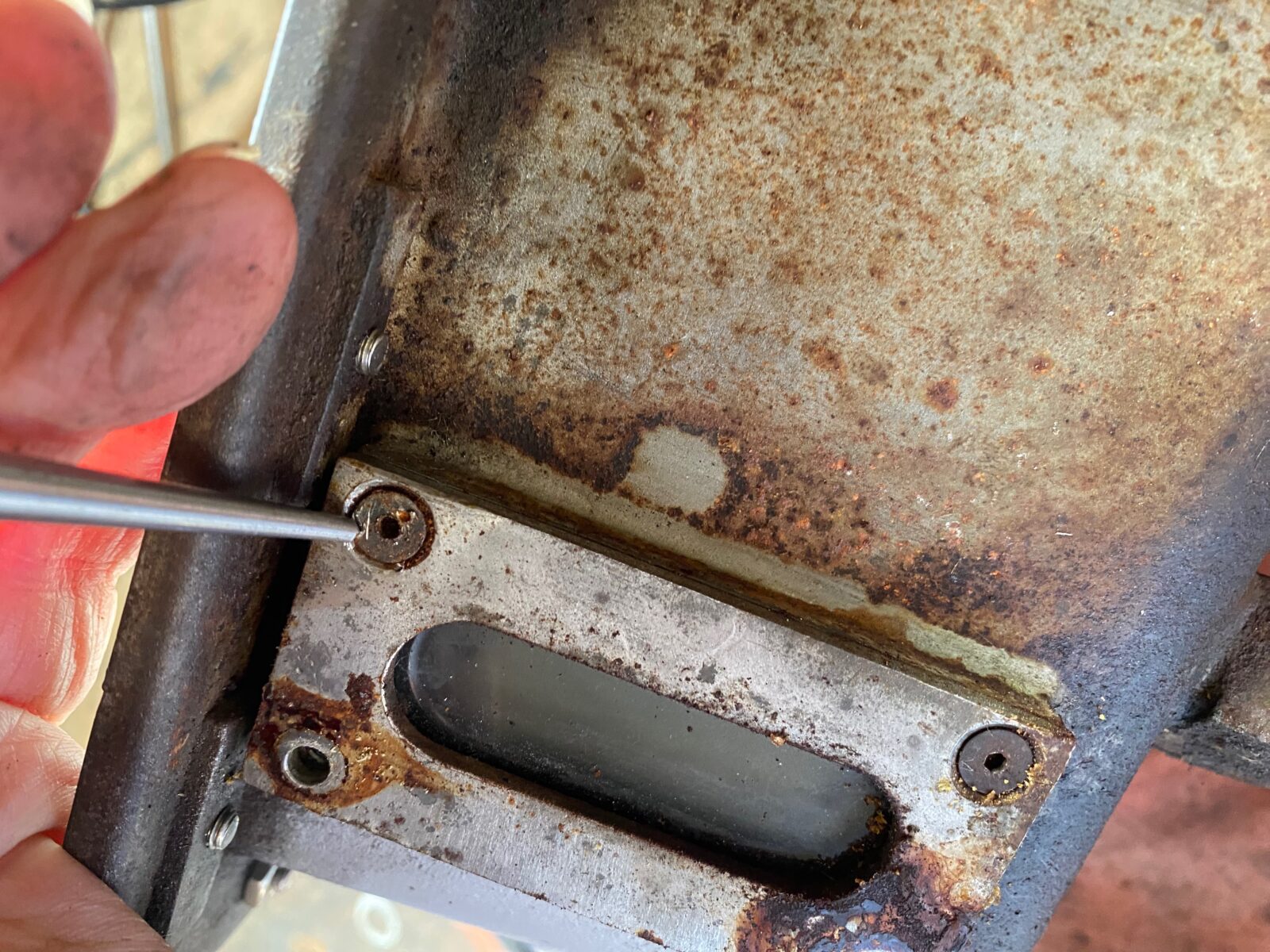

If screws are seized, use a smalll center punch to free them up from the taper.

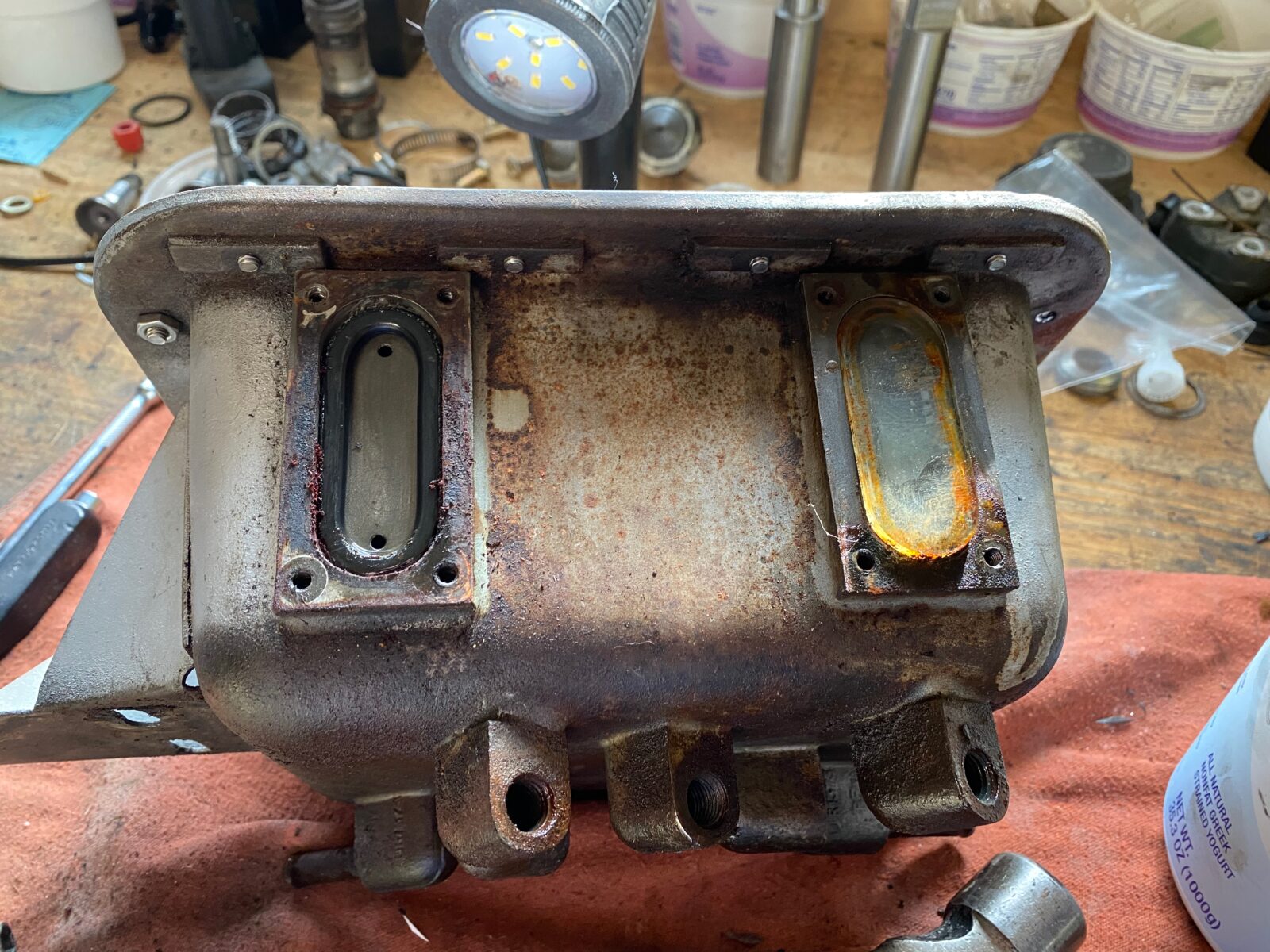

Now the screws can be removed.

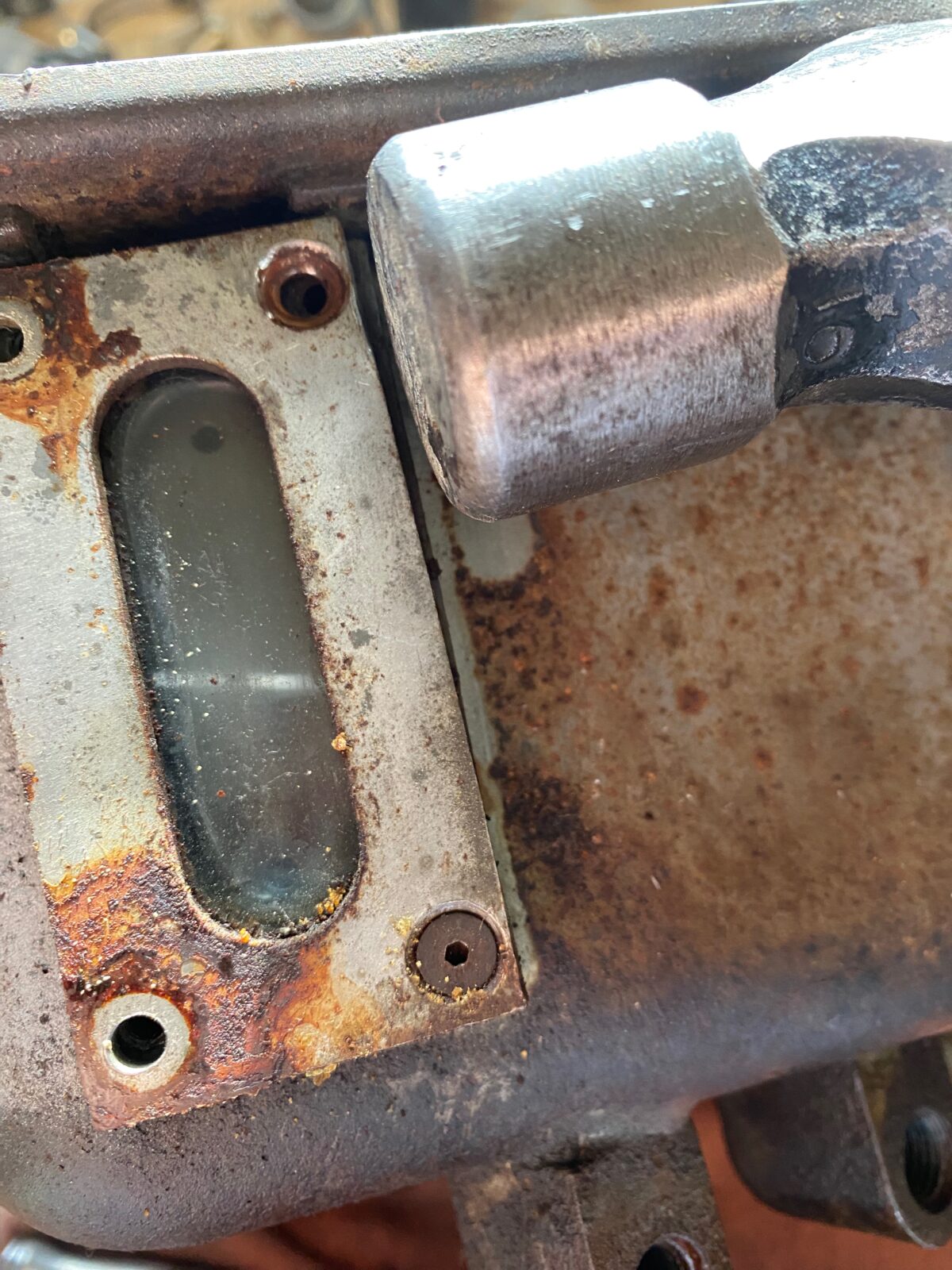

Tap glass surround to free bottom screw should it be seized.

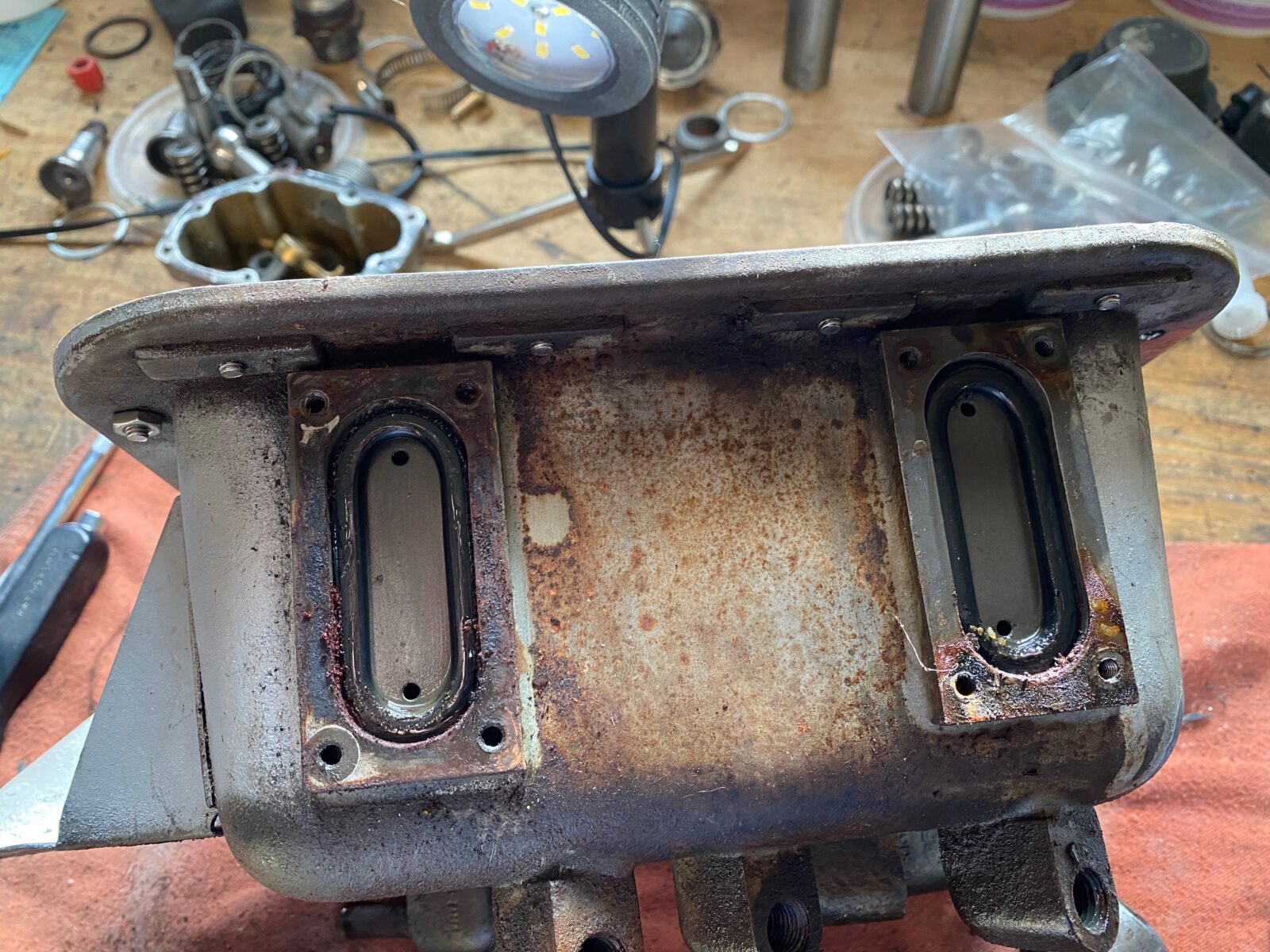

Glass can now be removed.
Sealing “O” ring is revealed and should be replaced.
Showing both “O” rings.
